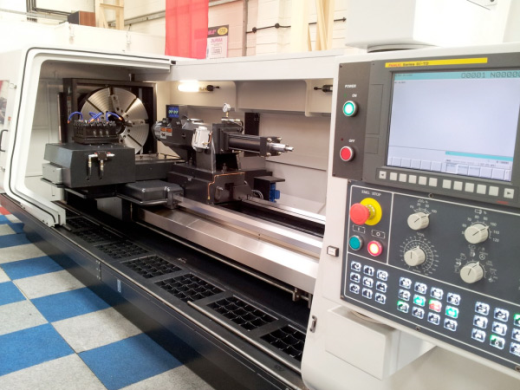

NEW: Tuscan LC34 x 4000 CNC Lathe with Fanuc Oi TD Control

Photo 1

Photo 2

Photo 3

Photo 4

SPECIAL STOCK PRICE: £ 165,000 + VAT

Normal List Price: £ 267,948 + VAT

Specification:

Swing over bed 870mm
Swing over cross slide 500mm
Centre height 440mm
Distance between centres 4150mm
Spindle bore 230mm
Spindle nose A2-15
Spindle centre MT#6
X axis feed 0.1mm/min-3000mm/min
Z axis feed 0.1mm/min-3000mm/min
Bed width 560mm
Tailstock body movement Hydraulic
Tailstock centre MT#6
Tailstock quill travel 200mm
Tailstock quill diameter 165mm quill

Standard Equipment:
Fanuc 0i- TD control with 10.4" colour screen
Fanuc 0i-TD built in Manual guide I with 3D graphics function
Fanuc 3kw X-axis servo motor, Fanuc 4kw Z-axis servo motor
Spindle bore 9" (230mm,) spindle nose A2-15
30/37kw Spindle motor
H4 250 VDI turret- with tool holders
Rotating tailstock quill diameter 165mm
Hydraulic tailstock movement
Electric & handwheel quill movement
Steady rest 255-455mm
Steady rest 30-300mm
Follow rest
Boring bar support - dia 153mm
Boring bar - length 1200mm
Full guarding
Front & rear chip conveyors
Two chip carts
Auto lubrication system
Coolant system
Air conditioner for electrical cabinet
Operation, electrics & control manuals & parts list
Halogen lights
Tool box & tools
Spindle sleeve, spindle centre, tailstock centre
Anchor bolts, levelling pads, levelling bolts
Transformer
?32" American 4 jaw chuck- Taiwanese
Oil skimmer
ISO 9001 & CE certified


Category: Lathes - CNC

Seller's location: Milton Keynes, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 30 Dec 2021
