Kingsland second hand machinery

200 ton x 3000mm Hydraulic Downstroke 6 Axis CNC Press Brake. Cybelec V-DNC-1200-b Control. Manufactured 2002

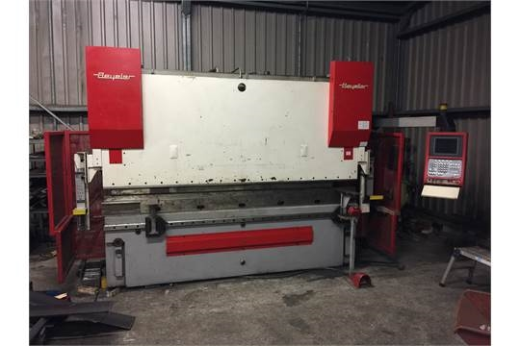

Photo of machine

Photo 1

Photo of machine

Photo 2

Photo of machine

Photo 3

Photo of machine

Photo 4

Photo of machine

Manufacturer: EDWARDS PEARSON
Model: PR6
Location: HOSE
Serial No.: 02/425/029
Year of Manufacture: 2002
Control: Cybelec V-DNC-1200-b
Back gauge: Programmable
Guards: Fiessler Infrared
Capacity: 200 ton x 3000mm
Maximum length of bend: 3100mm
Between frames: 2740mm
Daylight: 490mm
Throat depth: 400mm
Stroke length: 215mm
Input: 415/3/50 ac 15 kW
Tooling: Full Length Top Tooling & Single Vee
Actuated via: Wander Type Foot Switch
Fitted with: Rear & Side Guards, Hydraulic Tool Clamping & Crowning and 2 x Front Work Supports
X=Back gauge in/out: X
Y=Beam rise & fall: Y1 Y2
R=Fingers rise & fall: R
Z= Fingers left/right: Z1 Z2
Length: 17' / 5.18m With Pendant Arm, Width 6'8" / 2.03m, Height 8'8" / 2.64m
Nett weight approx: 12 ton / 12,192 kgs
[Ref: 32422]



Category: Presses and drop stamps

Location: Leicestershire, UK
