TOS SN 71C

Photo 1

Photo 2

Photo 3

Photo 4

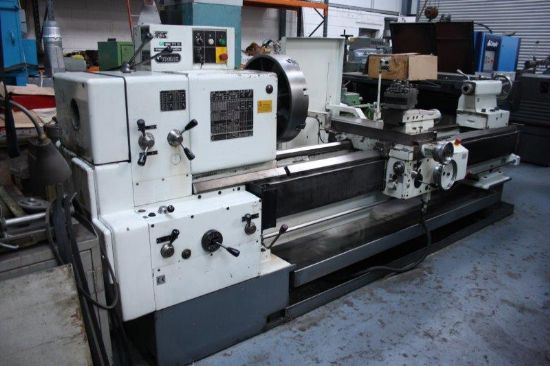

Offered to the market in very nice ciodition with 3 jaw chuck, 2 axis Newall DRO and a powered saddle, this TOS SN71C x 2000mm is worth a look. YOM 2006, in stock and ready for demonstation.
Capacity:
Swing Over Bed -28"
Swing Over Cross Slide - 16-1/2"
Swing In Gap - 37-1/2"
Distance Between Centers - 160"
Width of Bed - 17 -3/4"
Width of Gap In Front of Face Plate - 11-7/8"
Leadstock:
Spindle Speed (16) - 10-1,000 RPM
Spindle Bore, Thru Hole - 2-7/8"
Spindle Nose Camlock - D1-8
Spindle Taper Morse - 6"
Threads & Feeds (Carraige & Compound:)
Number of Cross & Longitudinal Feeds - 38
Longitudinal Feed Range - .002 - .252 In/Rev
Cross Feed Range - .001 - .126 In/Rev
Thread Range:
38" Thread Tips - 1-80
29 Metric Threads - .05-40 mm
26 Module Threads - .25 - 20 mm
31 Diameter Pitch Threads - 2-72 DP
Travel:
Leadscrew - Diameter x Pitch - 1-7/8" x 1/4"
Cross Slide Travel - 16"
Top Slide Travel - 7"
Tailstock:
Spindle Diameter - 3-1/2"
Spindle Travel - 9-1/2"
Taper In Tailstock Barrel - MT #5
Tailstock Lateral Adjustment (Either Side) - 3/8"
Main Drive:
Output Hp of Main Drive Motor - 10 Hp
Dimensions - 238" L x 57" D x 60" H
Weight - 7,880 LBS
Equipped With:
4 Jaw Chuck
2 Axis Digital Readout
Dorian Type Tool Post
Follow Rest
Coolant Pump & Tank


Category: Lathes - general

Seller's location: Bristol, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 12 Feb 2021
