MENGELE H 160-3 Hydraulic Press Brake

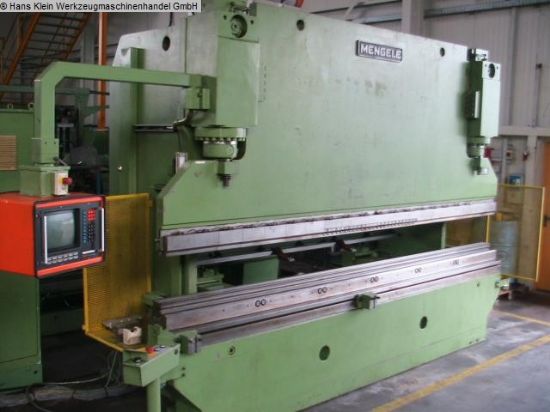

Photo 1

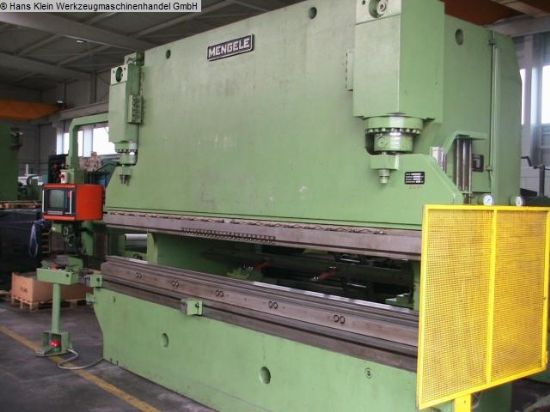

Photo 2

Photo 3

Photo 4

New in 1987
Control-Type CNC
Delivery Terms immediately
Quotation ex works, loaded on truck


pressure 160 t
chamfer lenght 4,000 mm
distance between columns 3,060 mm
control FORTRON CNC 10 H 4
throat 280 mm
stroke 250 mm
dayligth 500 mm
table length 4050 mm
table width 280 mm
feed down 70 mm/sec
feed up 68,4 mm/sec
working feed 9 / 3,5 mm/sec
operating pressure max. 205 bar
oil volume 400 l
total power requirement 19.5kW
weight of the machine ca. 20,8 t

Acc. programmable back gauge, upper and lower dies, table extensions

Category: Sheet metal-working

Seller's location: Germany
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 31 Dec 2021
