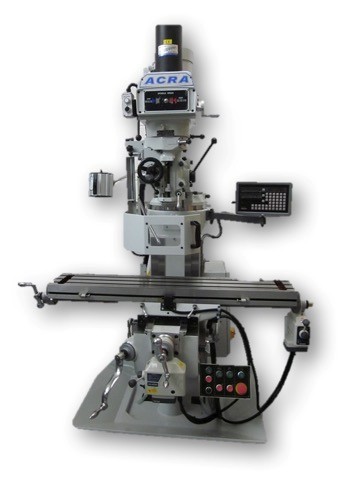

ACRA New FM-2V Turret Milling Machine IN STOCK NOW

Photo of machine

Photo 1

Photo of machine

Photo 2

Photo of machine

Photo 3

Photo of machine

Photo 4

Photo of machine

3 Axis Digital Read Out
·   Power Air Draw Bar
·   Power Feeds X And Y
·   Table – 230 X 1244mm
·   Longitudinal Travel – 750mm
·   Cross Travel – 305mm
·   Vertical Travel (Knee) – 305mm
·   Table T Slots (3) 16mm
·   Max Work Piece Weight 340kg
·   Vertical Spindle Motor 3HP
·   Spindle Speeds 50-3750rpm
·   Spindle Taper – R8
·   Spindle Nose To Table – 42-469mm
·   Quill Travel 127mm
·   Automatic Vertical Feeds (Per Rev) – 0.04, 0.08, 0.14mm
·   Head Swivel – (Left & Right) 90deg, (Front To Back) 45deg
·   Sound Pressure Level – Below 80db
·   Weight 900kgs
·   Floor Space (LxWxH) 2197 X 2000 X 2600mm



Category: Milling

Seller's location: Lancashire, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 14 Dec 2018
