WALDRICH-SIEGEN PF-H-100 1-325/275 x 15,700 Planer-Type Milling M/C - Double Column

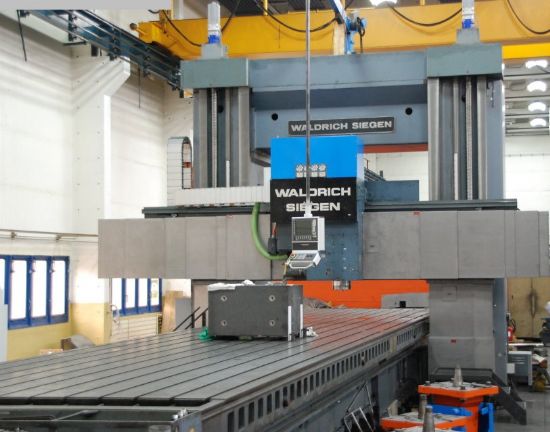

Photo of machine

Photo 1

Photo of machine

Photo 2

Photo of machine

Photo 3

Photo of machine

Photo 4

Photo of machine

Year of manufacture 1971/2016
Type of control CNC Siemens 840 D
Storage location Gera
Country of origin Germany
Delivery time immediately
Freight basis ex location, not dismantled


Technical details
x-travel 16000 mm
y-travel 5000 mm
z-travel 2450 mm
w-travel 400 mm
table: 2 x 7500 x 3000
double table 15.700 x 3000 mm
table load 150 t
max. passage 3250 mm
diameter of quill 320 mm
spindle turning speed range 6-200, 200-600 U/min
transmission ratio 2
drive capacity - spindle motor 95 kW
spindle taper ISO 60
electrics - voltage/frequency 380/50 V/Hz
Control Siemens 840 D SL
weight of the machine ca. 260 t
dimensions of the machine ca. 34000 x 10000 x 6000 m
Accessories
angular milling head 10x
Additional information
Retrofit in 2016:
- electrics including cabling and cabinet new
- new CNC-control SIEMENS 840 D Solution line
- hydrostatic guideways for table with 6 pumps and 2 pumps for tank
- change from DC to AC (motors)
- all guideways geometrically overhauled (laser measured)
- modifcation cross beam to gantry type
- all guideway covers new - delivery end of October 2016
- spindle drive changed into 3-phase current
- misc. milling heads - 10 pcs. - especially for diesel-engines


Category: Milling - NC/CNC

Location: Germany
