CORREA FP40/50 CNC Milling machine - Bridge type

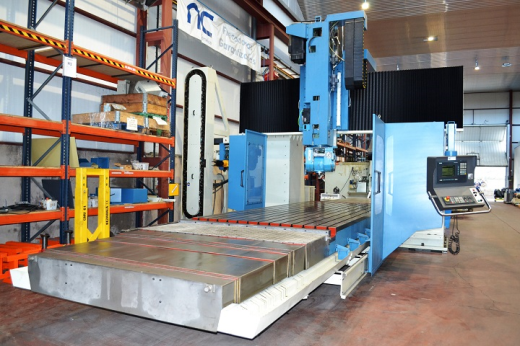

Photo 1

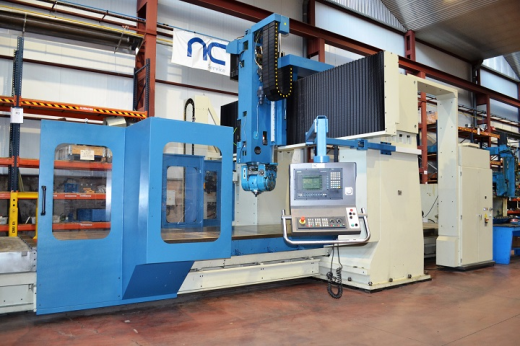

Photo 2

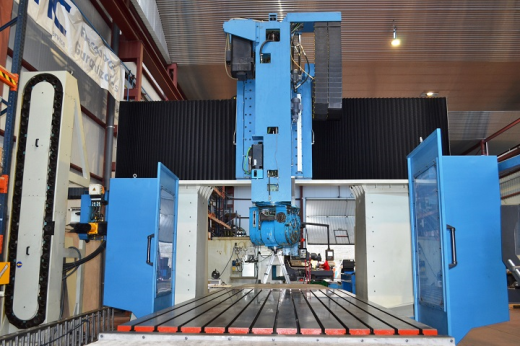

Photo 3

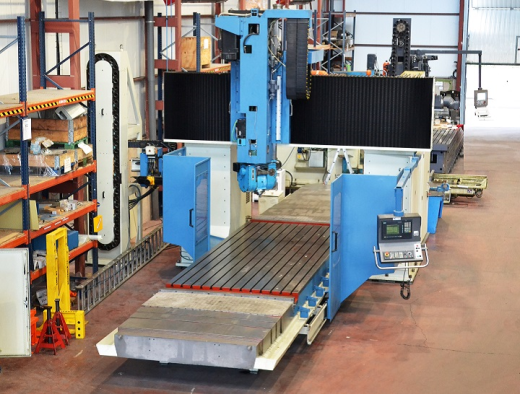

Photo 4

Control: SIEMENS 840D
Year: 1998

• Table dimensions: 5000 x 2000 mm
• Number of T slots: 13
• T slots dimensions: 22 mm

• X axis traverse: 5000 mm
• Y axis traverse: 3250 mm
• Z axis traverse: 1000 mm
• Distance between columns: 2500 mm

• Head type: C5E- 2 axis continuous head
• Tool clamping system: Hydraulic
• Taper nose: BT 50
• Speed range: 40 - 4000 rpm
• Spindle power: 37 kW / 372 Nm

• Feedrate: 2 - 5000 mm/min
• X-Y,Z Rapid feedrate: 7200 / 12000 mm/min

• Max Weight on table: 25000 kg
• Machine weight: 40500 kg
• Machine dimensions: 12700 x 5070  x 4900 mm

• Guarding
• Automatic tool changer: ATC-60
• Electronic handwheel: New SIEMENS 6FX2007-1AC04
