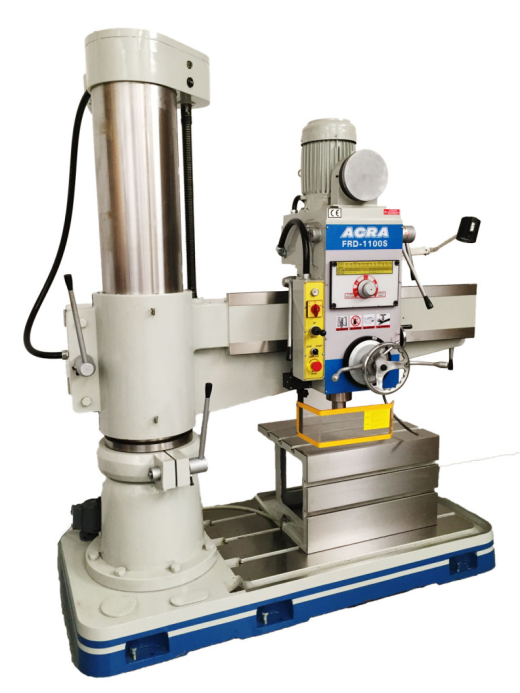

ACRA Radial Drilling Machine 1100S

Photo of machine

Photo 1

Photo of machine

Photo 2

Photo of machine

Photo 3

Photo of machine

Photo 4

Photo of machine

Specification 1100S
Drilling Capacity – Steel 50.8mm
Drilling Capacity – Cast Iron 60.32mm
Tapping Capacity – Steel 25.4mm
Tapping Capaicty – Cast Iron 31.75mm
Spindle Stroke 250.8mm
Spindle Taper MT 4
Spindle Speed 44~1500rpm
Spindle Diameter 77.78mm
Column Diameter 1244.6mm
Max Dist Spindle To Column 1143mm
Min Dist Spindle To Column 330.2mm
Max Dist Base To Spindle 1231.9mm
Min Dist Base To Spindle 330.2mm
Horizontal Headstock Travel 812mm
Spindle Drive Motor 3 HP
Arm Elevation Motor 2 HP
Coolant Pump Motor 1/8 HP
Hydraulic Pump Motor 1 HP
Net Weight 2000 KGS
Length 2000mm
Width 990mm
Height 2235mm

Category: Drilling

Seller's location: Lancashire, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 21 Dec 2020
