Hardinge SR200M

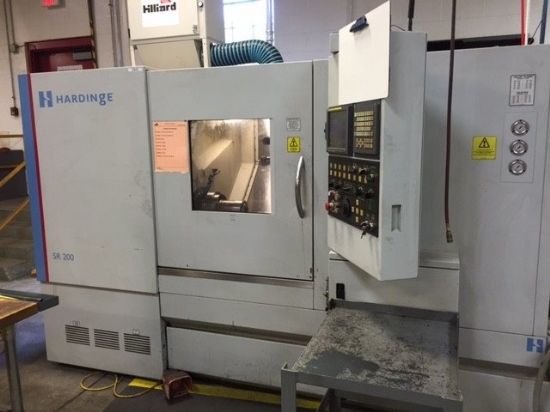

Photo 1

Photo 2

Photo 3

Photo 4

Hardinge SR200 - M
FANUC 21iT
Chuck Size: 200mm
Maximum Cutting Length: 510mm
Rapid Feedrates: X x Z: 28 x 38m/minute
Spindle Motor Power: 26kW
Max Torque 356 Nm Base speed 575 RPM
Spindle Nose: A2-6
Spindle Speed: 45 ~ 4500rpm
Swing: 519mm
Swing over the Cross-slide: 311mm
Tailstock Taper: MT #4
Tool Size: 25mm
Tooling Configuration: VDI30
Turret Positions: 12 Station
Bar Capacity: 65mm
Machine Dimensions L x D x H: 4190 x 2289 x 1973mm
Machine Weight: 7024kg
Supplied with:
C Axis and driven tooling, collet chuck, 3 jaw power chuck, tooling package, Coolant, Tailstock, Low Volt Light, swarf conveyor, bar feed and Manuals
Condition:
Used

Category: Machining centres

Seller's location: Bristol, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 12 Feb 2021
