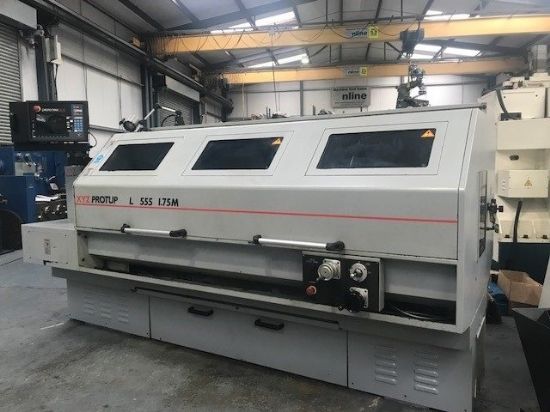

XYZ SLX 555 x 1.75m CNC Lathe

Photo 1

Photo 2

Photo 3

Photo 4

Constant Surface Speed.
Verify Solid Model Graphics.
2 Speed Headstock.
Rapid Traverse with Joy Stick.
3 Jaw Chuck 315mm.
Quick Change Toolpost and 6 Holders.
Centres and Bushes.
Air Assisted Floating Tailstock, with towing hitch.
Interlocked Chuck Guard and Main Guard.
Auto Lubrication.
Coolant.
Worklight
Swing over bed: 560 mm
Swing in Gap: 935 mm
Gap in front of faceplate: 297 mm (max.)
Swing over cross slides: 350 mm
Cross Slide Travel: 290 mm
Distance between centres: 1750 mm
Spindle bore 104 mm
Spindle nose D 1-11 camlock
Spindle taper MT7 in bush
Spindle motor 11 Kw (15hp)
Spindle speeds 30-1800 rpm – 2 ranges
Tailstock Travel 200 mm
Tailstock taper MT6
Tailstock diameter 105 mm
Bed Width 500 mm
Footprint L x D x H 5220 x 2150 x 1950 mm

Category: Lathes - CNC

Seller's location: Bristol, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 12 Feb 2021
