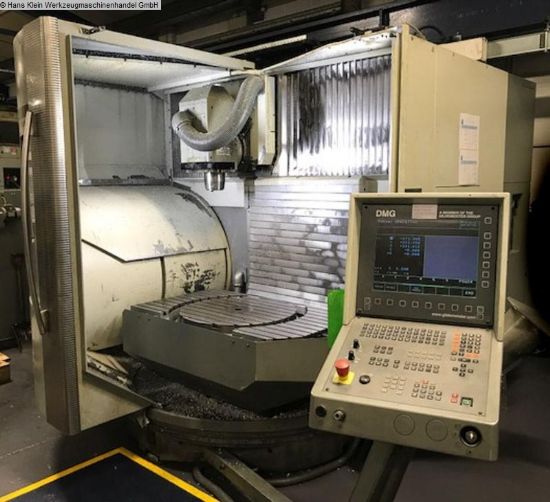

DECKEL-MAHO DMU 80 T Machining Centre

Photo 1

Photo 2

Photo 3

Photo 4

x-travel 880 mm
y-travel 630 mm
z-travel 630 mm
table surface area 1250 x 700 mm
NC-rotary table integriert, 700 mmø
spindle taper SK 40
spindle taper DIN 69871
spindle turning speed - stepless 20 - 12.000 U/min
control HEIDENHAIN
control TNC 430
feeds x/y/z -stepless 20 - 15.000 mm/min
rapid traverse 30 m/min
ATC 32 (2 x 16) Pos
tool diameter 80 / 130 mm
workpiece length 315 mm
weight of tools max. 8 kg
NC-rotary table - speed - max. 15 U/min
table load 600 / 500 kg
internal coolant system feed ja / yes
weight of the machine ca. 9,6 t
dimensions 4,4 x 2,44 x 2,49 m

Category: Machining centres

Seller's location: Germany
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 31 Dec 2021
