XYZ SM 2000

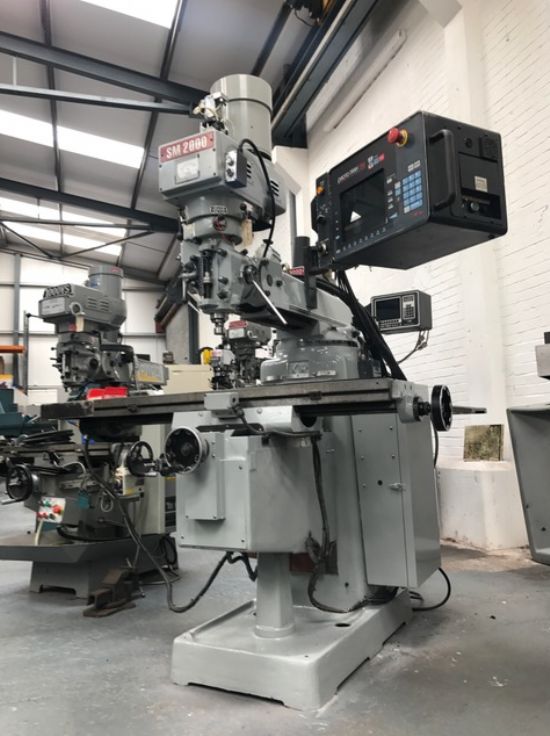

Photo 1

Photo 2

Photo 3

Photo 4

3HP Variable Speed Head
50” x10” (1270 x 254mm) TABLE
30” x 16” (750 x 380mm) TRAVEL
Spindle Drive Motor 2.25 kw (3 HP)
Vari Speed Range High/Low 75-4200 rpm
T slots-3 15.9 mm 3 off
Longitudinal travel - X axis 750 mm
Cross travel - Y axis 380 mm
Knee vertical travel - Z axis 400 mm
Slide type Hard Chrome
Ram travel 450 mm
Spindle taper R8
Quill power feeds .038 .076 .15 mm
Quill travel 110 mm
Quill diameter 86 mm
Max table load 350 kg
Swivel on turret 360 degs
Head tilt front to back 45o-45o
Head tilt left to right 90 degs-90 degs
Max throat depth 686 mm
Net weight approx 1250 kg

Category: Milling - NC/CNC

Seller's location: Bristol, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 12 Feb 2021
