CORREA FP40/40 - 8950304 CNC Milling machine - Bridge type

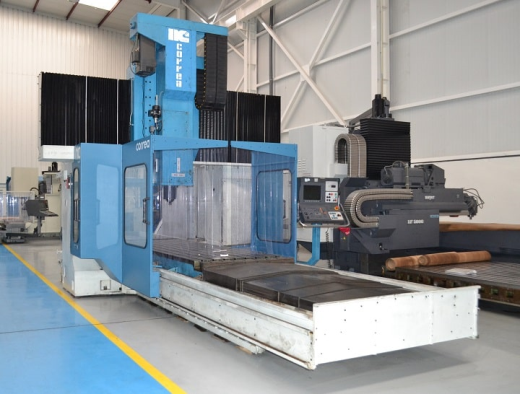

Photo 1

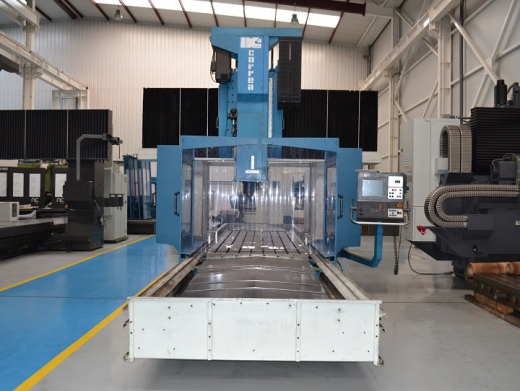

Photo 2

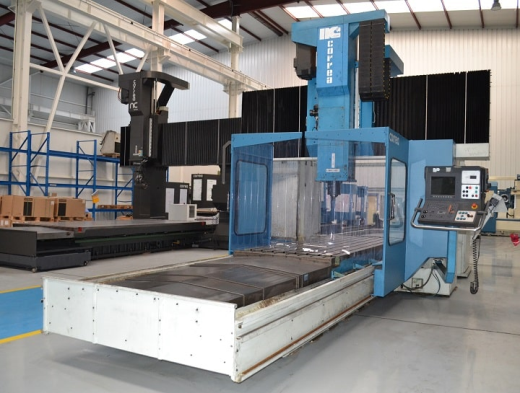

Photo 3

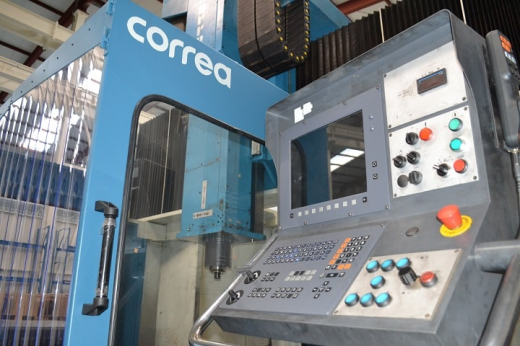

Photo 4

Control: HEIDENHAIN TNC-426
Year: 1997

• Table dimensions: 4000 x 1250 mm
• Number of T slots: 8
• T slots dimensions: 22 mm

• X axis traverse: 3500 mm
• Y axis traverse: 2500 mm
• Distance between columns: 2040 mm
• Z axis traverse: 1000 mm

• Standard vertical spindle
• Tool clamping system: Hydraulic
• Taper nose: ISO 50
• Speed range: 20 - 2000 r.p.m.
• Spindle power: 22 kW

• Feedrate: 2 - 5000 mm/min
• Rapid feedrate (X / Y,Z): 15000 / 12000 mm/min

• Max Weight on table: 10000 kg
• Machine weight: 24900 kg
• Machine dimensions: 10748 x 4932 x 4400 mm

• Guarding: Yes
• Coolant: External
• Electronic handwheel: HR-510
• Transversal metal hinged conveyor (1)
• Option: Workpiece measurement probe: Heidenhain TS-642
