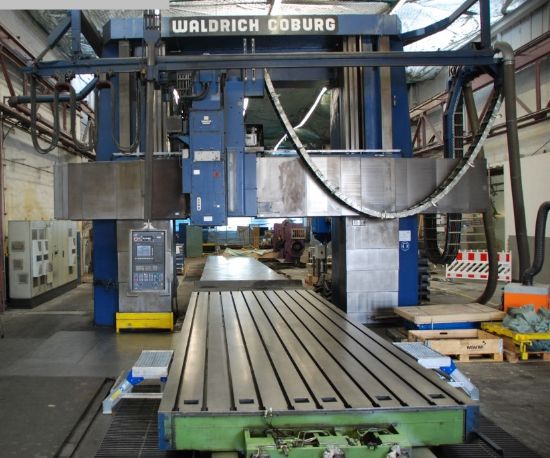

WALDRICH-COBURG Portal Milling Machine

Photo of machine

Photo 1

Photo of machine

Photo 2

Photo of machine

Photo 3

Photo of machine

Photo 4

Photo of machine

x-travel 17700 mm
y-travel 4755 mm
z-travel 800 mm
milling width 3450 mm
distance table - vertical milling spindle 3682 mm
table height over floor 500 mm
spindle diameter in front bearing 200 mm
turning speed range 12 - 450 U/min
tool taper ISO 60
axial adjustment of the spindle slide 800 mm
creep feed 5 und 50 mm/min
feed stepless 10 - 3000 mm/min
cross adjustment of cross beam milling head 4745
rapid traverse 2 m/min
creep feed 3 und 30 mm/min
feed stepless 6 - 2000 mm/min
r

Category: Milling

Location: Germany
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 26 Feb 2019
