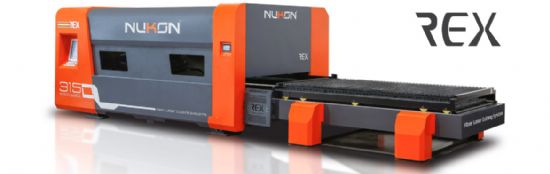

Nukon REX 315 Fibre Laser Cutting Machine

Photo of machine

Photo 1

Photo of machine

Photo 2

Photo of machine

Photo 3

Photo of machine

Photo 4

Photo of machine

2, 3, 4, 5 and 6 kW laser power options.
1530mm x 3050mm, dual modifiable shuttle table, easy intervention to the work piece.
REX model also provides pipe and profile cutting option in addition to metal sheet cutting. This is ideal for companies those are working with special pieces.
Nozzle cleaning, automatic repeat, loading/loading-unloading system and more features.
HIGH SENSITIVE DRIVER SYSTEM
Atlanta high precision helical gear rack and pinion system, precision planetary pinion system and servo - worm gear units are used.
Solid support and hardened ground gears of reducers are running with gap levels under 1 arc/min. Hardened and precision mounting surfaces are used in the racks of these systems.
DUST COLLECTION SYSTEM
Dust collection covers are opened and closed according to the position of the cutting head. At the same time, it ensures that there will be no exhaust fumes or smoke release into the working environment.
CUTTING TABLE
The shuttle table system is designed to increase workflow, to allow easy placement of material and to reduce time spent unloading parts. The shuttle table height is positioned with the help of four hydraulic cylinders. The cutting table is then lowered to aid in the loading and unloading process. The speed of the cutting tables can be adjusted according to the thickness of material.
ROBUST BODY STRUCTURE
A heavy body means less vibration and better durability. NUKON machine bodies are strengthened to minimize distortion and deformation. Solid steel frames are assembled and welded to achieve a heavy machine body. The machine body is then heat treated to prevent bowing and twisting. NUKON bodies are then machined with single point reference using 5 axis CNC machining centers. This single point referencing guarantees that all axis are parallel. Thus providing high accuracy and a long trouble free life for the machine.
PIPE CUTTING
Suitable for cutting and marking various metal pipes and tubes such as stainless steel, carbon steel, mild steel, alloy steel, galvanized steel, silicon steel, spring steel, titanium, etc.
Usable for advertising, crafts, decoration, lighting and other metal processing sectors.
AUTO DETECTION
The angle of the plate and its corner are found automatically by using 3-point detection method on the plate.


Category: Lasers

Seller's location: UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 16 May 2019
