4 Axis Twin Pallet Horizontal Machining Centre. Tosnuc 888 Control

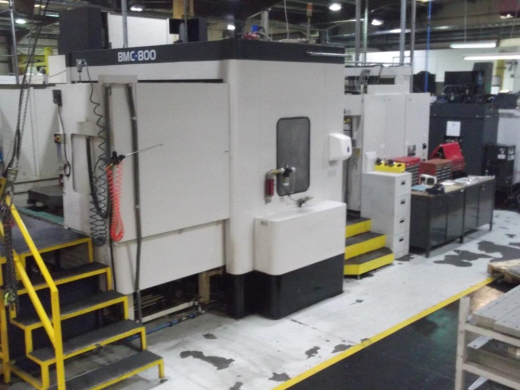

Photo of machine

Photo 1

Photo of machine

Photo 2

Photo of machine

Photo 3

Photo of machine

Photo 4

Photo of machine

Manufacturer: TOSHIBA
Model: BMC-800
Year of Manufacture: 1996
Control: Tosnuc 888
Pallet size: 2 x 800mm x 800mm, loading capacity 2000 kgs
Pallet table indexing: 0.001 cont
X Axis Travel: 1600mm
Y Axis Travel: 1250mm
Z Axis Travel: 1200mm
B Axis: 1 degree
Speeds: 10,000 rpm
Spindle taper: BT 50
Automatic tool changer: 60 ATC
Tool length: 550mm
Tool diameter: All pots full 125mm, Empty both sides 250mm
Tool weight: 25kg
Input: 30 kW main motor
Equipment: Swarf conveyor, Coolant
Nett weight approx.: 24,000 Kgs. / 23.6 Tons.
[Ref: J33291]



Category: Machining centres

Seller's location: Leicestershire, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 28 May 2020
