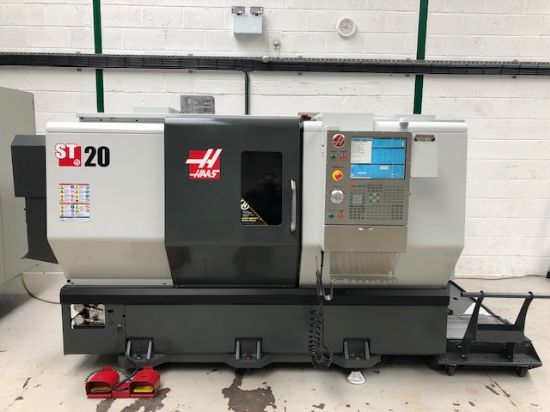

HAAS ST20 CNC Lathe with HAAS Control. Year 2014

Photo of machine

Photo 1

Photo of machine

Photo 2

Photo of machine

Photo 3

Photo of machine

Photo 4

Photo of machine

Swing Over Front Apron 806 mm. Swing Over Cross Slide 527 mm. Swing Tailstock 584 mm. Chuck Size 210 mm. Max Cutting Diameter 381 mm. Max Cutting Length without Workholding 521 mm. Bar Capacity 51 mm. X Axis 236 mm. Z Axis 533 mm. Rapids on X 24.0 m/min. Rapids on Z 24.0 m/min. Max Thrust X 20 408 N. Max Thrust Z 25 800 N. Spindle Nose A2-6. Max Rating 14.9 kW. Max Speed 4000 rpm. Max Torque 203 Nm @ 500 rpm. Spindle Bore 88.9 mm. Number of Tools 12 stations

Category: Lathes - CNC

Seller's location: Lancs, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 8 Jul 2019
