Skoda HCW2 180NC CNC Horizontal Boring & Milling Machine

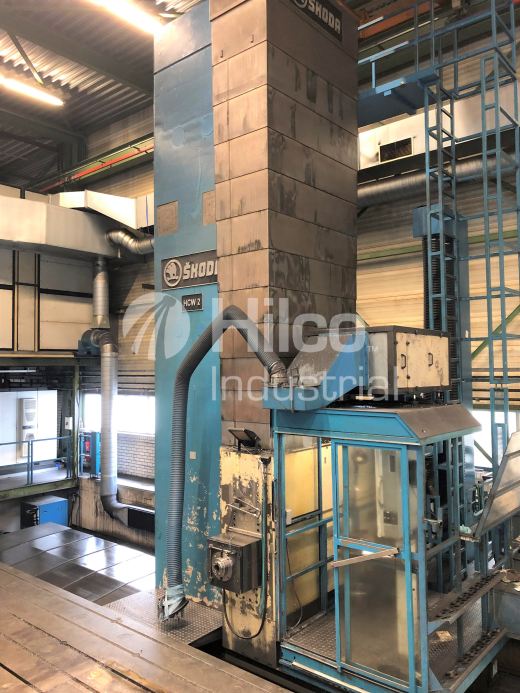

Photo of machine

Photo 1

Photo of machine

Photo 2

Photo of machine

Photo 3

Photo of machine

Photo 4

Photo of machine

Make: Skoda
Model: HCW2 180NC
Type: CNC Horizontal Boring & Milling Machine
S/N: Ob 24973
Year: 2006
Location: IJsselstein, Netherlands

General:
Control: Siemens Sinumerik 840D
Spindle Diameter: 180 mm
Spindle Taper: ISO 50/60
Ram Dimension: 450 x 450 mm

Travels:
X = Column Horiz. On Bed: 12.000 mm
Y = Headstock Vert. on Column: 4.500 mm
Z = Ram Axial Travel: 1.300 mm
W = Spindle Axial Travel: 1.200 mm

Spindle:
Max Spindle Speed: 2.000 RPM
Feed Rate X + Y: 0,5 – 15.000 mm/min
Feed Rate W + Z: 0,5 – 15.000 mm/min
Main Motor: 100 Kw

With:
Milling Heads
Travelling Platform
Bedway Covers X + Y
Floorplates:
Area 1: 9.300 x 3.750 | Area 2: 2.150 x 3.750

CNC Rotary Table:
Make: Skoda
Type: S100C
Centric Loading Capacity: 100T
Size of Clamping Plate: 4.000 x 3.550 mm
Width of clamping ‘T’-slots: 250mm
Total Height of Table: 1.430 mm
Table Slide Displacement along Bed (axis ‘V’): 2.000 mm
Rapid Traverse: 6.000 mm/min
Total Weight of Table: 49T

Category: Milling

Seller's location: Netherlands
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 13 Aug 2019
