Skoda HCW 3 225NC CNC Horizontal Boring & Milling Machine

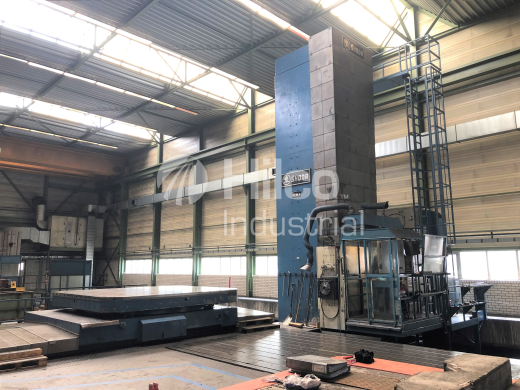

Photo of machine

Photo 1

Photo of machine

Photo 2

Photo of machine

Photo 3

Photo of machine

Photo 4

Photo of machine

Make: Skoda
Model: HCW 3 225NC
Type: CNC Horizontal Boring & Milling Machine
S/N: Ob 25060
Year: 2008
Location: IJsselstein, Netherlands

Control: Siemens Sinumerik 840D
Spindle Diameter: 225 mm
Spindle Taper: ISO 50/60
Ram Dimension: 520 x 520 mm

X = Column Horiz. On Bed: 20.000 mm
Y = Headstock Vert. on Column: 6.000 mm
Z = Ram Axial Travel: 1.600 mm
W = Spindle Axial Travel: 1.400 mm

Max Spindle Speeds: 1600 RPM
Feed Rate X + Y: 0,5 – 15.000 mm/min
Feed Rate W + Z: 0,5 – 15.000 mm/min
Main Motor: 130 kW

Milling Heads
Travelling Platform
Bedway Covers X + Y
Area 1: 18.500 x 3.750 | Area 2: 1.900 x 3.750

CNC Rotary Table:
Make: Skoda
Type: S100C
Centric Loading Capacity: 100T
Size of Clamping Plate: 4.000 x 3.550 mm
Width of clamping ‘T’-slots: 250mm
Total Height of Table: 1.430 mm
Table Slide Displacement along Bed (axis ‘V’): 2.000 mm
Rapid Traverse: 6.000 mm/min
Total Weight of Table: 49T

Category: Milling

Seller's location: Netherlands
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 13 Aug 2019
