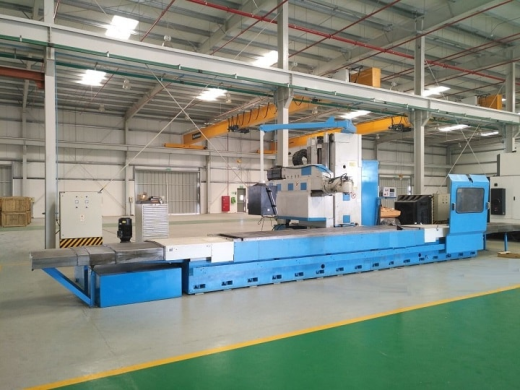

CORREA CF40/50 - 7700212 CNC Milling machine - Bed type

Photo 1

Photo 2

Photo 3

Photo 4

Control: HEIDENHAIN TNC-415 / Option new TNC-320
Year: 1991

• Table dimensions: 5000 x 1000 mm
• Number of slots: 8
• T slots dimensions: 22 mm

• X axis traverse: 5000 mm
• Y axis traverse: 1200 mm
• Z axis traverse: 1500 mm

• Head type: Universal manual / Option: New UDG every 2.5º
• Tool clamping system: Hydraulic
• Taper nose: ISO50
• Speed range: 20 - 2500 r.p.m.
• Spindle power: 30 kW

• Feedrate: 1 - 5000 mm/min
• Rapid federate (X / Y, Z):  15000 mm/min

• Max Weight on table: 12000 kg
• Machine weight: 27000 kg
• Machine dimensions: 5200 x 2900 x 2760 mm

• Electronic handwheel:  HR-410
• Guarding
