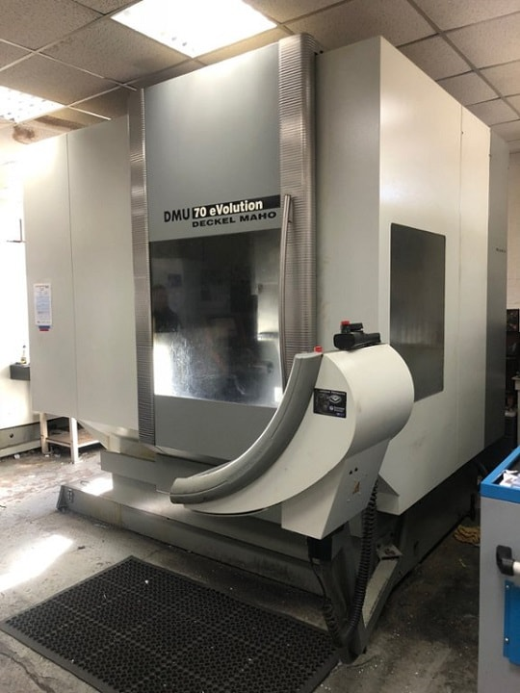

DECKEL MAHO - DMU 70 eVolution - 15035703884 CNC Machining centre - Vertical

Photo 1

Photo 2

Photo 3

Photo 4

Control: HEIDENHAIN TNC-422M
Year: 2001

Traverse of axes:

• X axis traverse: 750 mm
• Y axis traverse: 520 mm
• Z axis traverse: 520 mm

Main drive:

• Speed range: 20 – 18000 r.p.m.
• Spindle power (40/100 % ED): 22,5/15 kW
• Spindle torque (40/100 % ED): 130/87 Nm

Feedrates:

• Feedrate (X/Y/Z): 0 - 20000 mm/min
• Rapid feedrate (X/Y/Z): 50 m/min

Working table (B+C axes):

• Table dimensions : Ø 700 x 500 mm
• Maximum weight on table: 350 Kg
• T slots (Number / Size / Tolerance): 7 / 14 mm / H7
• C axis traverse: 360º (resol. 0.001º)
• B axis traverse: 180º (resol. 0.001º)

Machine:

• Machine dimensions (LxWxH) : 2604 x 5644 x 2829 mm
• Machine weight: 8320 Kg

Cone:

• Taper nose: SK 40 (DIN 69871)
• Hoolow chuck taper: HSK-AG3 (DIN 69893)

Power supply:

• Phases | Frequency | Voltage | Power:  3N | PE~50-60Hz | 400/230V | 50 kW

Accessories:

• External cooling
• Automatic tool changer: ATC-32

           -       Tool max. weight / Tool max. diameter: 6 Kg / 315 mm

• Electronic handwheel: HR-410
