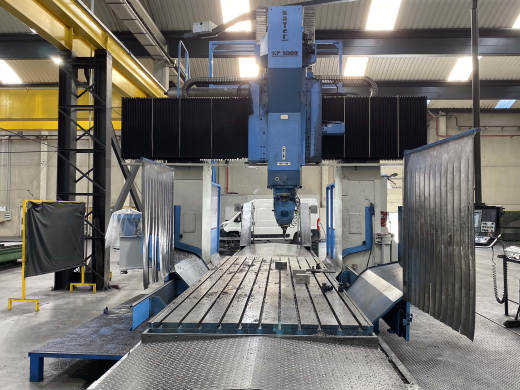

Zayer KP 5000 bridge type milling machine

Photo 1

Photo 2

Photo 3

Photo 4

New in Year :2001
Reconstructing Year :2017
CNC :HEIDENHAIN 530

Table Surface :5.000 X 1800 mm
Longitudinal Travel (X Axis) :4.710 mm
Cross Travel (Y Axis) :3.350 mm
Vertical Travel (Z Axis) :1.100 mm
Distance Between Columns :2.600 mm
Manual Head 45º : INCLUDED
Speed Manual Head 45º :6.000 rpm
Direct Output Head :INCLUIDO/ INCLUDED
Speed Direct Output Head :6.000 rpm.
Rapid Traverse Axes (X ,Y ,Z) :15.000 mm/min
Maximum Working Feed :5.000 mm/min
Taper :ISO-50
Main Motor Power : 37 Kw.
Speeds Ranges :2 Gamas
Coolant Head and Gearbox :INCLUIDO/ INCLUDED
Double Chip Conveyor :INCLUIDO/ INCLUDED
Positioning Accuracy :0.010 mm.
Repetitive Accuracy :0.005 mm.
Machine Colour :RAL 7038 / RAL 5012
Carrying Load Table :15.000 Kg.
Machine Weight :34.000 Kg.
Engines X,Y,Z,A,B Axis :DIGITALES
Portable Hand Wheel :INCLUIDO/ INCLUDED
Total Power Required :63 Kva.
Machine Condition :BUENO/ GOOD



Category: Milling - NC/CNC

Seller's location: Spain
