Doosan S280 CNC Lathe

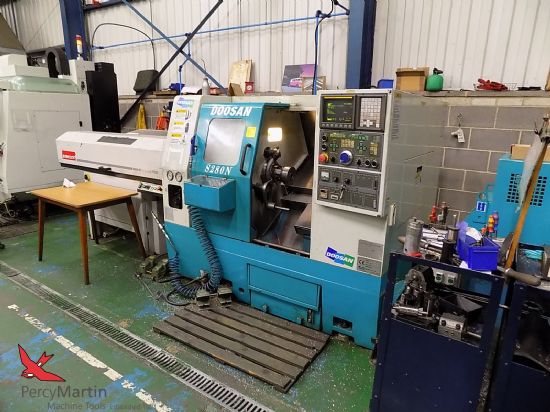

Photo of machine

Photo 1

Photo of machine

Photo 2

Photo of machine

Photo 3

Photo of machine

Photo 4

Photo of machine

Tool setter, Coolant, Tailstock, Interlocked guards, Low Volt Light, Magazine Barfeed, Collet Chuck, Manuals
Control: FANUC OiT
Swing: 450 mm
Bar Capacity: 51 mm
Distance Between Centers: 420 mm
Main Motor: 7.5/11 KW
Maximum Cutting diameter: 280mm
Maximum Cutting Length: 330 mm
Turret Positions: 10
Rapid Feedrates: XZ: 24 x 30m/minute
Spindle Nose: A2-6
Spindle Speed: 40 - 4500 rpm
Tailstock Quill Stroke: 80mm
Tailstock Taper: MT #4
X axis Travel: 155mm
Z axis Travel: 330mm

Category: Lathes - CNC

Seller's location: Leicester, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 15 Nov 2019
