CORREA DIANA-25 - 624063 CNC Milling machine - Bed type

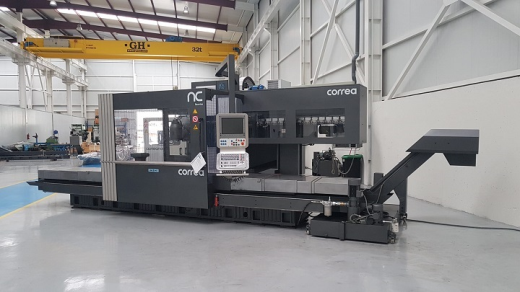

Photo of machine

Photo 1

Photo of machine

Photo 2

Photo of machine

Photo 3

Photo of machine

Photo 4

Photo of machine

Control: HEIDENHAIN TNC-i530
Year: 2008

  • Table dimensions: 2800 x 900 mm
  • Number of T slots: 5
  • T slots dimensions: 22 mm
  • X axis traverse (mm): 2500
  • Y axis traverse (mm): 1000
  • Z axis traverse (mm): 1000
  • Head type: Universal Auto-indexing UDG (2.5º)
  • Tool clamping system: Hydraulic
  • Taper nose: ISO 50 (DIN69871)
  • Speed range: 3000 r.p.m.
  • Spindle power: 22 kW
  • Rapid feedrate (X / Y, Z): 20000 mm/min
  • Max weight on table: 4000 kg
  • Machine weight: 15000 kg
  • Machine dimensions: 7114 x 5070 x 2803 mm

  • Guarding
  • Automatic tool changer: ATC-30
  • Electronic handwheel: HR-410
  • Coolant through spindle: High pressure
  • Coolant tank and coolant cleaning unit
  • Chip conveyor: longitudinal



Category: Milling - NC/CNC

Seller's location: Spain
