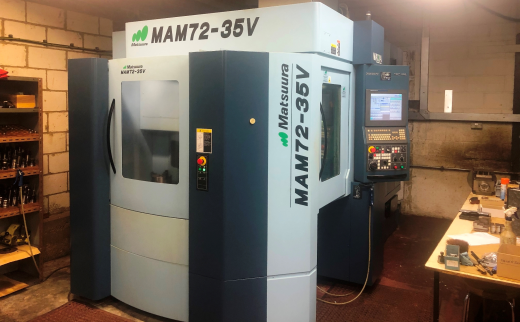

2014 Matsuura MAM 72-35 V

Photo 1

Photo 2

Photo 3

Photo 4

5-Axis Twin Pallet VMC

Fanuc G-Tech 31iB Control
Twin Pallet changer
5-axis Integral Unit with ø 130 mm work pallet
X/Y/Z travels 550/440/580 mm
B-axis +65° / -125°
C-axis 360°
Rapids X/Y/Z 60/60/60 m/min
Rapids B/C 50/100 rpm
Max workpiece ø 350 mm x 300 mm
Max workpiece weight 60 kg
Scale feedback on B-C axes
60 ATC
Big Plus BT 40 Spindle
Spindle speeds ~ 20000 rpm
Renishaw NC4 laser tool measure and breaking detection
Renishaw RMP 600 spindle probe
Spindle load monitoring function
Coordinate system rotation
5-Axis Package inc. High Speed 5-axis software
Tool radius comp for 5-axis cutting G41.5/G42.5
Rotary table dynamic fixture offset G54.2
Tool cente point for 5-axis cutting G43.5/G49
Large memory function 1GB Data Server
Inverse Time Feed G93
Tilted workplane command
NANO Smoothing Software

Category: Machining centres

Seller's location: Surrey, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 8 Aug 2023
