MACH 2020

GILDEMEISTER MF TWIN 65

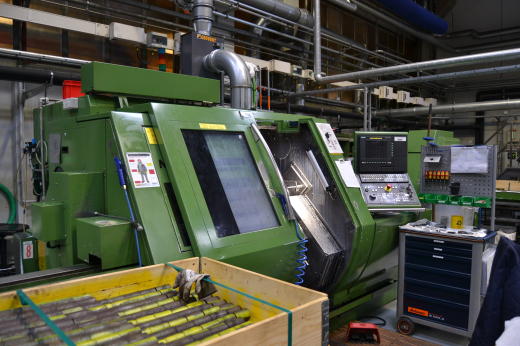

Photo of machine

Photo 1

Photo of machine

Photo 2

Photo of machine

Photo 3

Photo of machine

Photo 4

Photo of machine

Stock No.: 3445
CNC-LATHE
Manuf.: GILDEMEISTER, Type: MF TWIN 65
Serial No.: 04280002921, Build: 2000

Specifications:

Max. Turning dia o/slide 240 mm dia.
Max. Turning diameter 200 mm dia.
Max. collet chuck 65 mm dia.
Turning Length 555 mm
C Axis - Mainspindle Stroke 0.025 degree
Main Spindle speed Range 25-5000 rpm
Main motor power 25/21 kw
Y axis +/- 40 mm
Turret 1 with 12 Stations
Turret 2 with 12 Stations
Live Tooling Spindle speeds 40-4000 rpm
Motorpower M spindle 5 Kw
Sub Spindle
C Axis – Sub spindle Stroke 0.025 degree
Sub Spindle Speeds 31-6300 pr/min
Dist. between spindels 800 mm
Motor Power Subspindle 18/14 Kw
Control system Siemens 840D manuf.
Power on 31201 Hours

Length: 6000 mm, Height: 2500 mm, Width: 2500 mm, Weight: 6500 Kg



Category: Lathes - CNC

Seller's location: Denmark
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 5 Dec 2019
