Doosan Puma 600 2018 CNC Lathe

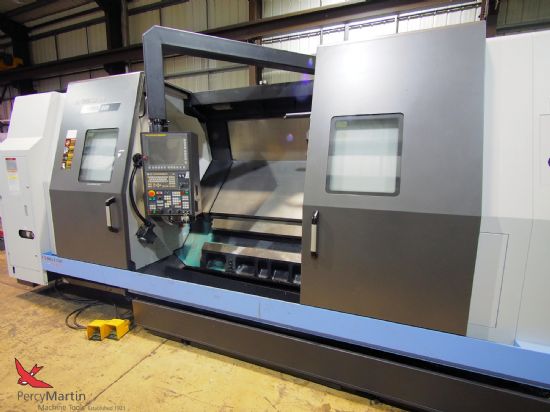

Photo of machine

Photo 1

Photo of machine

Photo 2

Photo of machine

Photo 3

Photo of machine

Photo 4

Photo of machine

Coolant, Tailstock, Interlocked guards, Low Volt Light, 3 Jaw Chuck, Swarf Conveyor
Control FANUC i Series
Swing 1030mm
Swing over the Cross-slide 800mm
Bar Capacity 117mm
Chuck Size 600mm
Maximum Cutting diameter 900mm
Maximum Cutting Length 1600mm
Turret Positions 12
Rapid Feedrates XZ: 12 x 16m/minute
Spindle Motor Power 45kW
Spindle Nose A2-15
Spindle Speed 1800rpm
Tailstock Quill Stroke 150mm
Tailstock Taper MT #6
Tool Size 32 x 32mm
X axis Travel 470mm
Z axis Travel 1650mm
Machine Dimensions 6911 x 3142 x 2780
Machine Weight 16300kg

Category: Lathes - CNC

Seller's location: Leicester, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 7 Jan 2020
