330mm x 1016mm Gap Bed Lathe

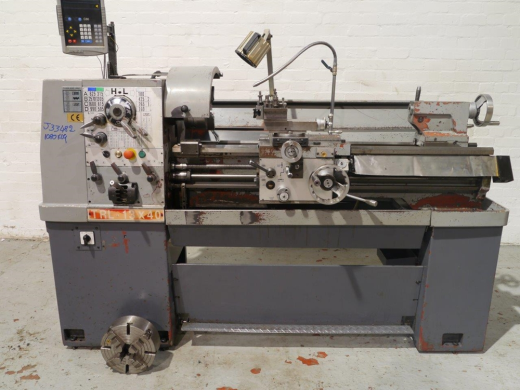

Photo of machine

Photo 1

Photo of machine

Photo 2

Photo of machine

Photo 3

Photo of machine

Photo 4

Photo of machine

Manufacturer: SEMCO
Model: TRL 13 x 40
Location: HOSE
Height of centres: 177mm
Between centres: 1016mm
Swing over bed: 330m
Swing over cross slide: 203mm
Swing in gap: 457mm
Spindle speeds: 50 - 2570 rpm
Spindle bore: 41.4mm
Tail Stock: 3 morse taper
Quick change gearbox: WHIT/METRIC/MOD/DP
Gap piece casting: 228mm
Bed type: Double vee
Input: 415/3/50hz
Pitch of lead screw: 4 TPI
3 jaw chuck: 200mm
4 jaw chuck: 250mm
Tool post: Quick change
Dials: Metric
Digital read out: Newall C80 2 axis
Fitted with: Splash guard, chuck guard, coolant
Length: 2150mm
Width: 1200mm
Height: 1680mm
Nett weight actual.: 1,080 Kgs. / 1 Ton
[Ref: J33482]



Category: Lathes - general

Seller's location: Leicestershire, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 17 Feb 2020
