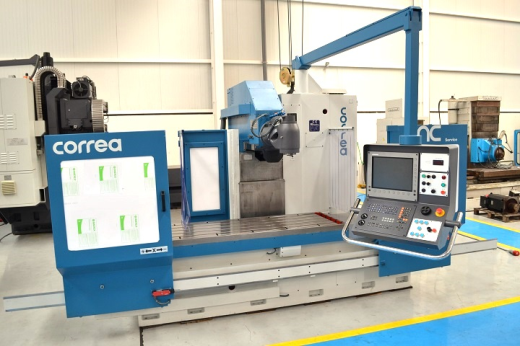

CORREA CF17D - 968732 CNC Milling machine - Bed type

Photo 1

Photo 2

Photo 3

Photo 4

Control: HEIDENHAIN TNC-426
Year: 2001

• Table dimensions: 2000 x 700 mm
• Number of slots: 5
• T slots dimensions: 22 mm

• X axis traverse: 2000 mm
• Y axis traverse: 800 mm
• Z axis traverse: 800 mm

• Head type: Universal manual (U22)
• Tool clamping system: Hydraulic
• Taper nose: ISO-50 - DIN2080
• Speed range: 3000 r.p.m.
• Spindle power: 17 kW

• Feedrate: 5 - 5000 mm/min
• Rapid federate (X / Y, Z):  12000 mm/min

• Max Weight on table: 3500 kg
• Machine weight: 9000 kg
• Machine dimensions: 5265 x 3250 x 2760 mm

• Guarding
• Electronic handwheel: HR-130
• Coolant: External
