Inter-plast

Geminis GHT6 g2 8000x1300

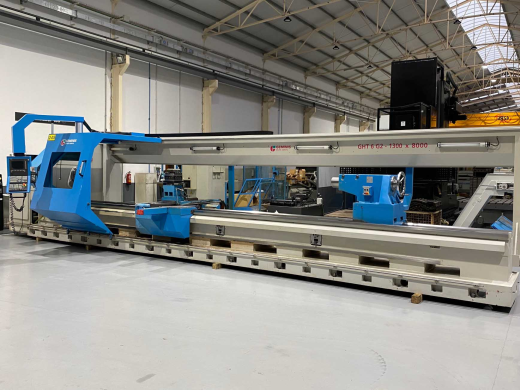

Photo of machine

Photo 1

Photo of machine

Photo 2

Photo of machine

Photo 3

Photo of machine

Photo 4

Photo of machine

Year :2.007
CNC :SIEMENS 840 D
Max. Swing Over Bed Ø :1.300 mm.
Max. Swing Ø :1.300 mm.
Max Swing Over Cross Slide Ø :940 mm.
Distance Between Centres :8.000 mm.
Rapid Feed X, Z Axis :8 m/min
Turning Speeds :0-800 rpm
Spindle Automatic Ranges :4 Ranges
Main Spindle Motor Power :46 Kw.
Spindle Nose :DIN-55026-B11
Turret Type :AUTOMATICA
Positions in turret :4 Posiciones
Chuck with 4 Indep. Hard Jaws Ø800 mm. : INCLUDED
Chuck Protection : INCLUDED
Complete Rear Protection : INCLUDED
Longitudinal Chip Conveyor : INCLUDED
Qui.l Diameter : INCLUDED
Quill Travel :104 mm.
Tailstock Quill Diameter :180 mm
Tailstock Quill Travel :300 mm
Max.Weight Between Centres (1 Steady) :10.000 Kg.
Machine Weight :24 Tn.


Category: Lathes - CNC

Seller's location: Spain
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 25 Feb 2020
