CORREA CD50 CNC MOBILE COLUMN MILLING MACHINE

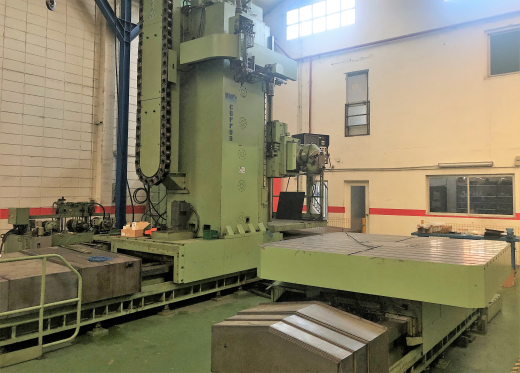

Photo of machine

Photo 1

Photo of machine

Photo 2

Photo of machine

Photo 3

Photo of machine

Photo 4

Photo of machine

TRAVELLING COLUMN MILLING MACHINE

Manufacturer: CORREA
Model: CD 50
CNC: HEIDENHAIN TNC 415 B

Technical features

Travels
Longitudinal travel X axis 5.000mm
Vertical travel Z travel 2.000mm
Ram travel Y axis 1.200mm

Head
Universal head U50
Main motor power 30/37kw

Accesories
ATC. 60 tolls in vertical/longitudinal position
Hydrostatic system feed pump

Rotary table with translation movement
CNC controlled table and integrated at source
Table surface 2.000x2.000mm
Loading capacity 20.000kg
Table’s longitudinal axis 1.500mm
Guides Hydrostatic

Equipment
User’s manual

Remarks
The Correa CD 50 milling machine is a mobile column milling machine with hydrostatic guidance.
This model stands out for its strength, more common in heavy boring machines than in milling machines.
The milling machine incorporates a rotary table with translation and load capacity of 20 tons and hydrostatic lift system, integrated in the CNC of the machine. Both guides and hydraulic system pumps are in very good condition.
The machine can be delivered in its current state with the Heidenhain TNC 415 B or updating the CNC, regulators and motors on request, such as Heidenhain TNC 320, TNC 640 or Fagor 8065.
The machine is available in our warehouses in Zaragoza to inspect it on demand.



Category: Milling - CNC 4th Axis

Seller's location: SPAIN
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 26 Feb 2020
