Mazak Integrex 100-IV S

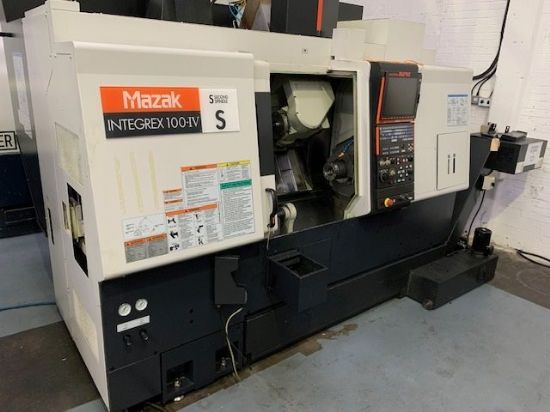

Photo 1

Photo 2

Photo 3

Photo 4

A very rare, immaculate and late machine, fitted with sub spindle, driven tools, 2 x C-Axis, heavy duty milling spindle with B-Axis, 40 tool ATC, swarf conveyor, barfeed & tooling package.
Specification:
Capacity
Maximum Swing 530 mm / 20.87 in
Maximum Machining Diameter 500 mm / 19.690 in
Maximum Bar Work Capacity 51 mm / 2.0 in
Maximum Machining Length 854 mm / 33.620 in
Main Spindle
Chuck Size 6 in
Maximum Speed 6000 rpm
Motor Output (30 minute rating) 11 kw / 15.0 hp
Second Spindle
Chuck Size 6 in
Maximum Speed 6000 rpm
Motor Output (30 minute rating) 11 kw / 15.0 hp
Milling Spindle
B-Axis Travel 240°
Magazine Capacity 40 Tool
Maximum Speed 12000 rpm
Motor Output (20 ED Rating) 8 kw / 10 hp
Feed Axes Travel (X Axis) 450 mm / 17.72 in
Travel (Y Axis) 210 mm / 8.27 in
Travel (Z Axis) 904 mm / 35.59 in
Travel (W Axis) 903 mm / 35.55 in
Condition:
Used

Category: Lathes - CNC

Seller's location: Bristol, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 12 Feb 2021
