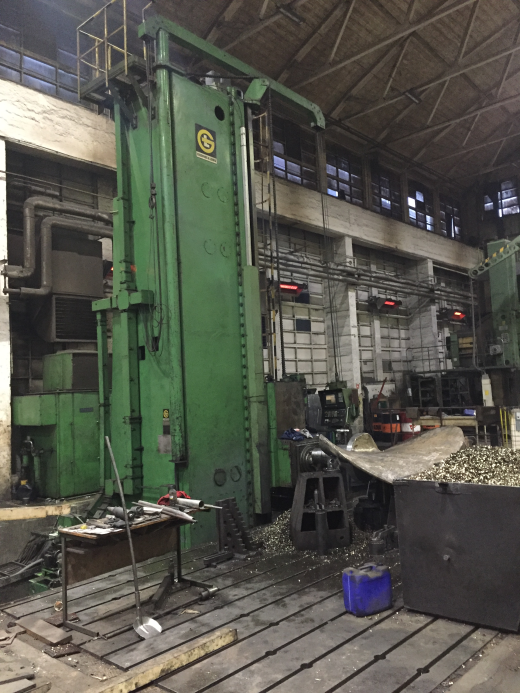

Giddings&Lewis floor type horisontal boring mill CNC

Photo 1

Photo 2

Photo 3

Photo 4

Model: 700RF Ram TypeAge: 1980 – CNC Retrofit 2001
Reconditioned & Retrofittedby Giddings & Lewis
SPECIFICATIONS MM INCHES
Spindle Diameter 178 mm
Vertical Head Travel, Y 4572 mm
Column Travel, X 9144 mm
Spindle Travel, Z-1 914 mm
Ram Travel, Z-2 914 mm
Total Axial Travel,Ram and Spindle 1828 mm
Ram Cross Section 508 x 508 mm
Taper in Spindle ...................................................#50 ISO
Spindle Speeds - Variable .............................5–800 RPM
Spindle Motor ................................................56KW/75HP
DRO INFEEDING ROTARY TABLE FRORIEP
SPECIFICATIONS MM INCHES
Table Size dia. 2800 mm
Table Infeed, W 3000 mm
Table Weight Capacity ............................................................................60 Tons
B Axis Table Rotation (Contouring) ........................................................360,000 Positions
SIEMENS 840D 3-Axis CNC Control, New 2001, Renishaw Probing System, DNC Communication Link, (2) Special Internal Boring Heads, Model A Angular Milling Attachment serial number 201-254-80, 48" Giddings & Lewis Continuous Feed Facing Head, Lubricool System.


Category: Boring - NC/CNC

Seller's location: Slovenia
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 22 Mar 2020
