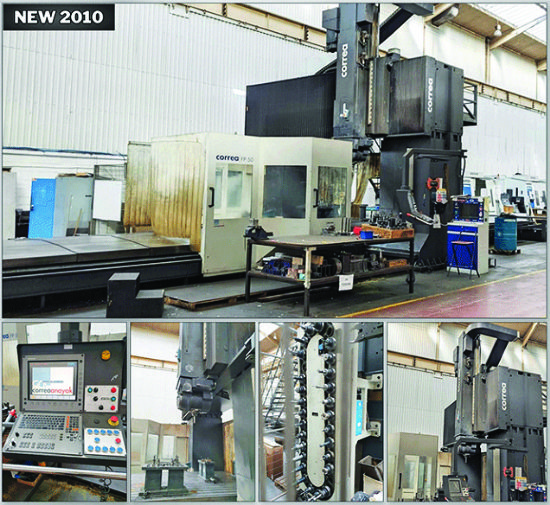

Nicolas CORREA FP 50/80 5-Axis Bridge-Type Milling Machine

Photo of machine

Photo 1

Photo of machine

Photo 2

Photo of machine

Photo 3

Photo of machine

Photo 4

Photo of machine

Equipped with:
• Heidenhain iTNC-530 CNC
• 30-station automatic tool changer
• C5E heavy duty 2-axis continuous milling head

Specifications:
Distance between columns: 122.04in / 3,100mm
X-axis travel – longitudinal: 314.96in / 8,000mm
Y-axis travel – transversal: 149.60in / 3,800mm
Z-axis travel – vertical: 49.21in / 1,250mm
Spindle to table: 19.68-68.89in / 500-1,750mm

Milling head:
Type: C5E
Number of continuous axes: 2
Head swivel: +/-190º
Head rotation: 360º
Spindle speed: 4,000rpm
Spindle taper: BT50
Spindle motor: 50hp / 37kW
Constant torque up to: 498rpm
Max torque: 718Nm

Table:
Table size: 314.96 x 98.42in / 8,000 x 2,500mm

Feeds:
Max working feed rate: 275.59in/min / 7,000mm/min
Rapid traverse X-axis: 393.70in/min / 10,000mm/min
Rapid traverse Y/Z-axis: 472.44in/min / 12,000mm/min

Dimensions and weight:
Machine length: 763in / 19,380mm
Machine width: 225.90in / 5,740mm
Machine height: 235.03in / 5,970mm
Approx machine weight: 169,000lbs / 77,000kg

Category: Milling - NC/CNC

Seller's location: Northants, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 26 May 2021
