Nicolas CORREA FP50-80 5 Axis Bridge Type CNC Milling Machine

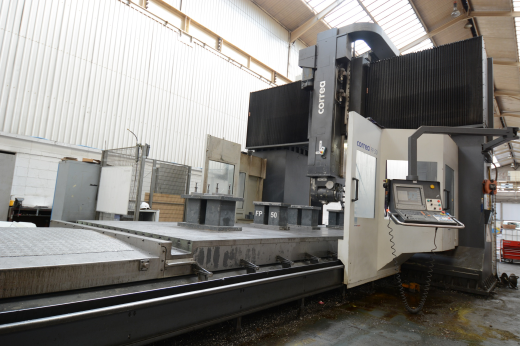

Photo of machine

Photo 1

Photo of machine

Photo 2

Photo of machine

Photo 3

Photo of machine

Photo 4

Photo of machine

CORREA FP-50/80 5-Axis CNC Bridge Type Milling Machine
Age: 2010

Category: Mills, Bridge & Planer Type, Manual & CNC


Specifications:

FEATURES:
Heidenhain iTNC-530 5-Axis CNC Control:
C5E 2-Axis Continuous Milling Head:
30-Position ATC:
37 KW Spindle Motor:

SPECIFICATIONS:
Distance Between Columns: 3100 MM
X-Axis Travel, Longitudinal: 8000 MM
Y-Axis Travel, Transversal: 3800 MM
Z-Axis Travel, Vertical: 1250 MM
Distance Range, Table To Spindle: 500 MM -1750 MM
Maximum Distance Table Bridge: 2100 MM

MILLING HEAD:
Type: C5E
Number Of Continuous Axes: 2
B-Axis Head Swivel: +/-190 Degrees
C-Axis Head Rotation: 360 Degrees
Spindle Speed: 4000 RPM
Spindle Taper: BT-50
Spindle Motor: 37 KW
Diameter of Front Bearing: 100 MM
Constant Torque Up To: 498 RPM
Max. Torque: 718 Nm

TABLE:
Table Size: 8000 MM x 2500 MM
Table Load Capacity: 34927 KG .

FEEDS:
Max. Working Feedrate: 7000 MM/MIN
Rapid Traverse, X-Axis: 10000 MM/MIN
Rapid Traverse, Y/Z-Axis: 12000 MM/MIN

DIMENSIONS & WEIGHT:
Machine Length: 19380 MM
Machine Width: 5738 MM
Machine Height: 5970 MM
Approximate Machine Weight: 76838 KG .

Equipped With:
Heidenhain iTNC-530 CNC Control
C5E 2-Axis Continuous Milling Head
30-Position Automatic Tool Changer
Remote Pendant Control
Thermal Growth Compensation System
MACHINE HOURS:
25,182 Spindle On Hours
74,640 Machine On Hours

Category: Milling - NC/CNC

Seller's location: Northants, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 7 Jan 2021
