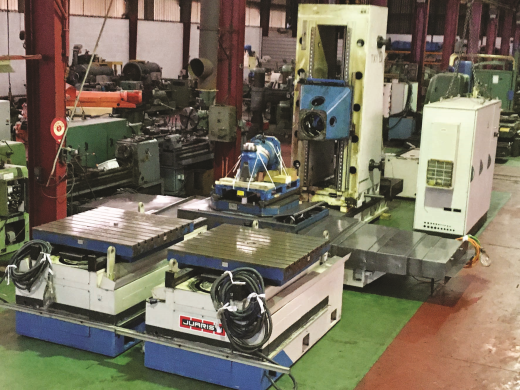

JUARISTI TX1-D Vertical milling center T-type 4 axis

Photo 1

Photo 2

Photo 3

Photo 4

Video

Reference: CUV018
Model TX1-D-MGX6-ATC-APC
YOM 2007
Vertical travel (mm) Y1500
Travel of the column (mm) Z1500
Longitudinal travel (mm) X2000
Table size (mm) 1250x1250 (x2)
T-slots size 22H7
N°of T-slots 7
Distance between T-slots (mm) 160
Weight admitted (T) 6
A-C axis (°) +/- 1
B-axis (°) 0.001 (continuous)
ATC 40
Spindle attachment (Iso) 50 DIN 69872
Spindle speeds (Rpm) 2 range / 5-5000
Feeding speeds (mm/mn) XYZ 10000
Rapid feeding speed (m/mn) XYZ 25
Main motor power (Kw) 37
Machine equipped with : CNC SIEMENS 840 D / Swarf conveyor / Coolant through spindle pressure 20 Bars / Pallets changer
Weight of the machine (T) 35

Category: Milling

Seller's location: France
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 21 Dec 2020
