Poreba TCG125 x 12,000mm Heavy Duty Centre Lathe

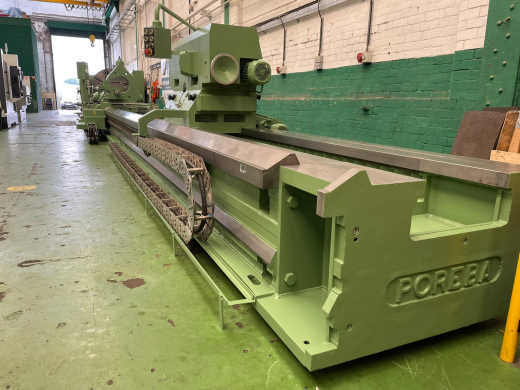

Photo 1

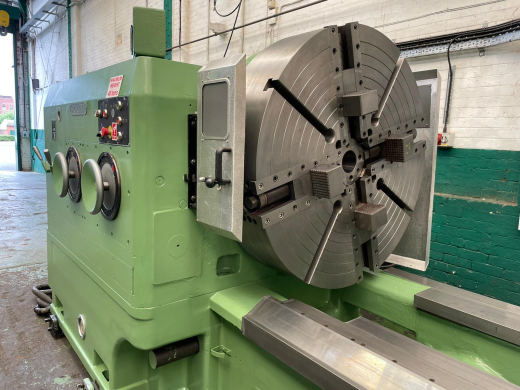

Photo 2

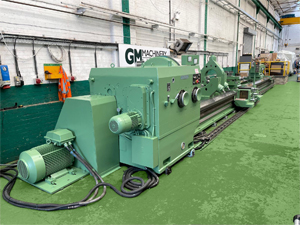

Photo 3

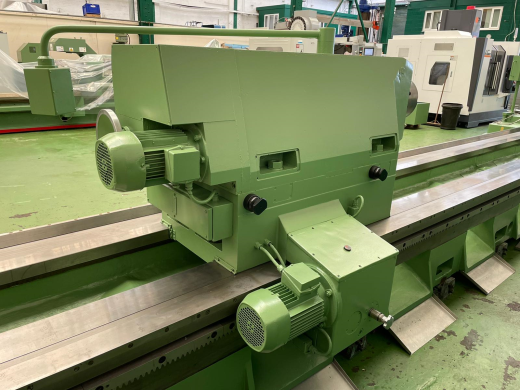

Photo 4

Height of centres 625 mm. Maximum swing over bed 1250 mm. Maximum swing over saddle 940 mm. Distance between centres 12,000 mm. Maximum turning length 12,000 mm. Chuck diameter 1250 mm. Maximum clamping dia. in chuck 1050 mm. No. of spindle speeds 24. Range of spindle speeds 1.6 – 315 rpm. Spindle bore 105 mm. Bed width 1100mm.Bed height above floor level 600 mm. Cross slide traverse 800 mm. Top slide traverse 600 mm. Tool cross section 70 mm x 70 mm. Rapid traverse of saddle 4000 mm/min. Rapid traverse of cross slide/tip slide 2000mm/min. No.of metric threads 81. Threads cut with whole saddle 1 – 192 mm. Threads cut with top slide 0.25 – 48 mm. Number of threads per inch 96. Threads cut with whole saddle 30 – 1/8 TPI. Threads cut with top slide 7./2 – 1/32 TPI. Range of tapers turned 1:1.5 – 1:1000. Quill dia. 280 mm. Quill rapid traverse 300 mm/min. Tailstock rapid traverse 1500 mm/min. Main motor 75 kW. Main motor speed 1470 rpm. Rapid feed motor 3 kW. Rapid feed motor speed 1500 rpm. Tailstock traverse motor 1.1 kW. Quill travel motor 2.2 kW. Lubricating system motor 0.6 kW. Equipped with 1250mm dia. 4 jaw chuck & jaws. 2 x fixed steadies.

Category: Lathes - general

Seller's location: Lancs, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 31 Dec 2021
