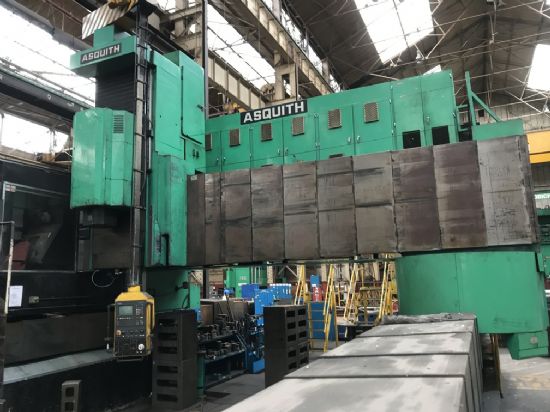

Asquith CNC Gantry Milling & Boring Machine with Siemens 850 CNC Control

Photo of machine

Photo 1

Photo of machine

Photo 2

Photo of machine

Photo 3

Photo of machine

Photo 4

Photo of machine

Floor Plate area 13,000 mm x 3,660 mm
Travel X = 14,000 mm Travel Y = 4,000 mm Travel Z Ram = 1,250 mm
Distance between columns 4,850 mm
Height under spindle variable choice at time of installation (gantry rails floor or plinth mounted)
ATC 60 position tool changer
Main motor 63kW
Spindle taper ISO 50
Selection of 5 milling head attachments in storage auto head collection area
High speed head 2000 rpm – Right Angle head – Universal – extended spindle support head
Quantity of tooling – product setting blocks and clamps
Serial number P 056027 (1990)

*Upon installation the rails can be floor mounted or mounted on a plinth to provide extra height as shown in these photos

Category: Milling - NC/CNC

Seller's location: Newcastle upon Tyne, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 22 Dec 2020
