Blue Diamond Machine Tools

MAZAK FJV 60/160 II Vertical Machining Centre

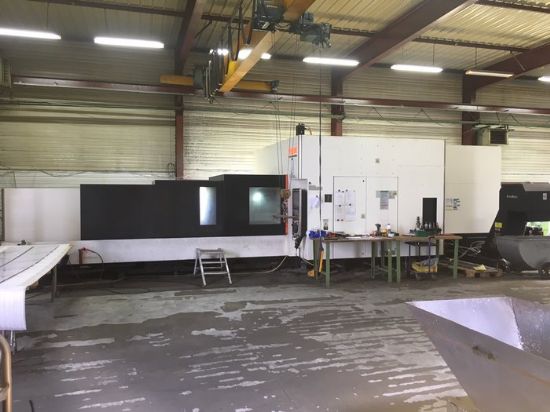

Photo of machine

Photo 1

Photo of machine

Photo 2

Photo of machine

Photo 3

Photo of machine

Photo 4

Photo of machine

CNC : MATRIX NEXUS 2

Options:
30 ATC CAT 40
Swarf conveyor Consep 2000
High pressure thru spindle coolant 70 bar
Niagara coolant
Renishaw OMP 60
Handwheel
Performance package
Extended memory

Specifications :

Travel X/Y/Z : 4200 x 1400 x 660 mm
Table size : 4000 x 1260 mm
Distance between columns : 1500 mm
Spindle to table min / max : 160 – 820 mm
Max table load : 5 000 kg
Rapid traverse X/Y/Z : 22 / 40/ 30 m/min
Spindle speed : 18 000 RPM
Spindle taper : CAT 40
Spindle power : 37kw
Max tool Ø : 125 mm
Opposite pockets empty : 210 mm
Max tool length : 380 mm
Max tool weight : 20 kg
ATC : 30

Category: Machining centres

Seller's location: France
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 22 Dec 2020
