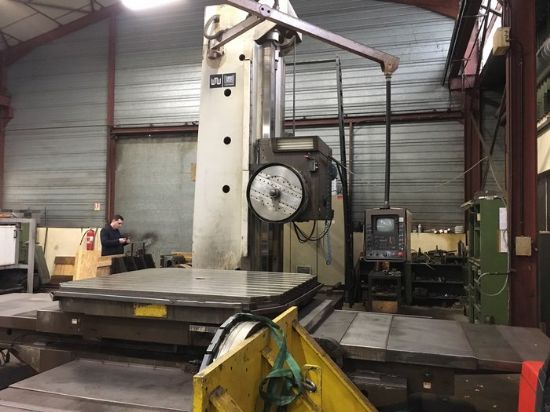

UNION BFT 130 CNC Table Type Borer

Photo 1

Photo 2

Photo 3

Photo 4

CNC : HEIDENHAIN TNC 355

Equipped with :

Manual universal milling head
Facing head
Spindle extension

Specifications :

Table size : 2.000 x 1.800 mm
X Stroke (transversal) 2 780 mm
Y Stroke (vertical) 2 520 mm
Z axis 2 500 mm
W axis (spindle) 1 000 mm
B axis (table) 360 000 positions
U axis (facing plate) 320 mm
Spindle diameter 130 mm
Spindle taper ISO 50
Spindle Speed (4 mechanical ranges) 5 - 1 000 RPM
Spindle power 45 kW
Feed rates 5 - 2 500 mm/min
Rapids 5 m/min
Total power requirement 70 kW / 350 A
Overall dimensions 6 x 6 x h 5,2 m

Category: Boring - NC/CNC

Seller's location: France
