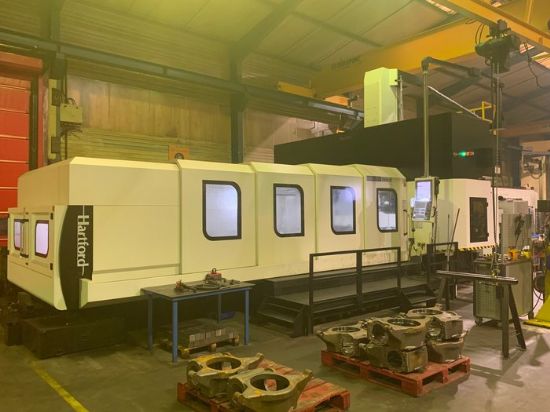

HARTFORD HSA 627-EA 5 Axis CNC Portal Milling Machine

Photo 1

Photo 2

Photo 3

Photo 4

Options :

2 axis programmable universal head C 360° x 1° A +/- 110° x 1° - 4000tr/min BT50
20 bar through spindle coolant
60 ATC
Chip management system
3135 Spindle hours

Specifications :

X stroke 6 000 mm
Y stroke 2 700 mm
Z stroke 1 000 mm
Distance between columns 2 800 mm
Distance spindle to table (vertical spindle) 1 350 mm
Table size 6 000 x 2 200 mm
Table load 18 000 kg
Rapide traverse X/Y/Z 12 000 / 20 000 / 15 000 mm/mn
Spindle taper BT 50
Spindle power 25 KW
Spindle speeds vertical spindle 1 to 8 000 RPM
Puissance totale connectée 65 Kva
Poids de la machine 47T
Dimensions de la machine LxWxH 17 000 x 7 300 x 5100

Category: Milling - NC/CNC

Seller's location: France
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 22 Dec 2020
